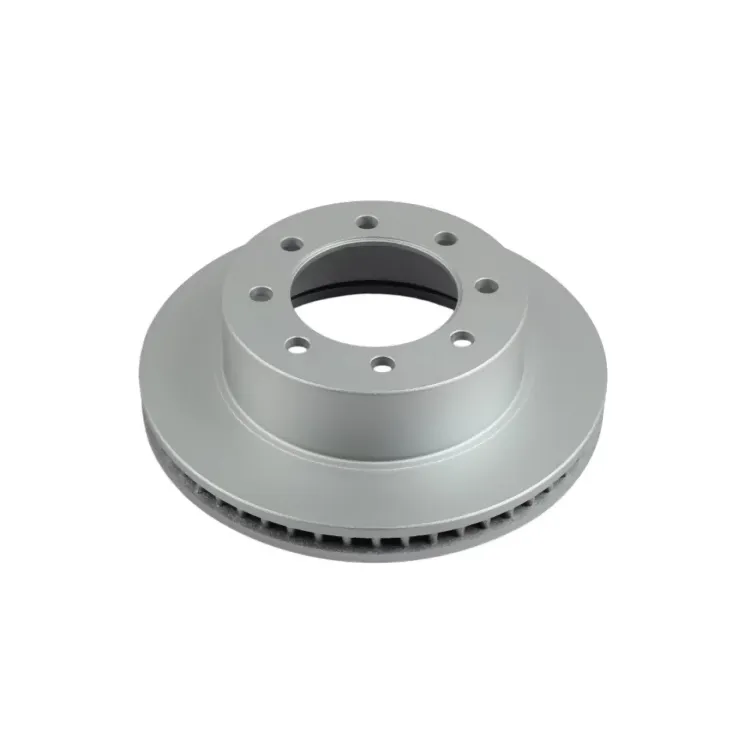

In the automotive world, brake discs are critical components that literally can mean the difference between safety and disaster on the road. The reputation of "Made in China" has often been clouded with skepticism regarding quality standards. However, Laizhou Guanzhuo is challenging that narrative with a rigorous, detail-driven quality control process that ensures every brake disc leaving their factory commands global trust and meets the highest safety benchmarks.
The foundation of a high-performing brake disc starts at raw material selection. Guanzhuo operates an exclusive on-site laboratory equipped with advanced spectrometry technology to analyze iron ore batches for critical elements such as carbon, silicon, and manganese. Their 3-step elemental verification guarantees adherence to specific high-carbon gray iron and ductile iron alloys optimal for wear resistance and toughness.
During melting, precision is paramount. Utilizing medium-frequency induction furnaces, each melting cycle is strictly maintained within 1480°C–1520°C. This temperature range ensures impurities rise to the surface and the iron’s microstructure remains fine-grained—vital for performance consistency. Samples from every melt batch undergo mechanical testing, confirming hardness levels around Rockwell 55 HRC and tensile strength above 400 MPa before proceeding.
Production at Guanzhuo adheres to an exacting standard down to the micrometer. The molds, crafted on CNC machining centers, hold dimensional tolerances within ±0.02 mm—about one-third the diameter of a human hair. Before each run, molds are scanned with laser measurement devices to identify any wear or deformation preventing defects.
Heat treatment further elevates brake disc capabilities. Guanzhuo applies an isothermal quenching technique, heating discs to 860°C with a 2-hour soak, then swiftly cooling them in a 280°C salt bath. This method results in a uniform bainitic microstructure that balances exceptional hardness and wear resistance (target hardness Rc55-60) with critical impact toughness, mitigating cracking risks during braking.
CNC lathes and precision grinders are employed during the final machining phase. Surface roughness on the brake disc friction face is controlled below Ra0.8μm to optimize the contact with brake pads, reducing noise and improving braking performance. Installation surface flatness is tightly held within 0.03 mm parallelism, ensuring vibration-free operation post-installation.
Quality assurance culminates in a suite of exhaustive tests. Dynamic balance testing at 3000 RPM enforces a maximum imbalance threshold of 5 g·cm, preventing vibration issues during vehicle braking. Discs failing this standard undergo precision grinding until balance criteria are met.
Durability under corrosive conditions is confirmed through a 720-hour salt spray test simulating marine environments, ensuring corrosion resistance without rust or coating degradation over 30 continuous days. This rigorous protocol secures longevity and reliability across global climates.
Visual inspections utilizing high-resolution imaging detect surface imperfections such as pores, fouling, or machining marks, eliminating aesthetic and functional defects. Every batch’s inspection data is meticulously recorded, providing traceability and continuous process improvement feedback.
| Quality Control Stage | Key Measurements & Standards | Target Value |
|---|---|---|
| Raw Material Elemental Analysis | Carbon, Silicon, Manganese Levels | Within alloy recipe ±2% |
| Melting Temperature | 1480°C – 1520°C | Maintained ±10°C |
| Dimensional Tolerance (Mold) | Mold cavity precision | ±0.02 mm |
| Surface Roughness (Friction Face) | Ra value | ≤ 0.8 μm |
| Balancing Test | Unbalance weight @ 3000 RPM | ≤ 5 g·cm |
| Salt Spray Resistance | Duration and no visible corrosion | 720 hours (30 days) |
Laizhou Guanzhuo’s relentless focus on precision—from raw material selection, sophisticated heat treatment, to exacting production tolerances and multi-faceted testing—embodies an ethos of integrity and safety. Their standardization and craftsmanship tear down long-standing prejudices about "Made in China" automotive parts quality. For every international buyer demanding reliability, Guanzhuo represents a steadfast partner committed to excellence and driver safety worldwide.
